KubeAPI-Inspector: Discover the secrets hidden in apis

A tool specifically designed for Kubernetes environments aims to efficiently and automatically discover hidden vulnerable APIs within clusters. It reveals and demonstrates a common error through a workshop format, which could lead to API endpoint authentication failures and potentially compromise the entire cluster. The workshop can be deployed using Kubernetes resource YAML files.

Features

Implemented in Inspector

  • 【✅】Automatically parse OpenAPI to identify sensitive fields
  • 【✅】Automatically detect potential authentication bypass APIs
  • 【✅】Automatically load credentials from the environment

To be Implemented in Inspector

  • 【 】Automatically discover services and detect potential vulnerabilities in extension API servers
  • 【 】exploitation of known control plane components?

Implemented in Workshop

  • 【✅】Flawed implementation of the REST layer

To be Implemented in Workshop

  • 【 】Typical vulnerabilities involving operator controllers

Installation

Requirements

  1. golang>1.22
  2. kubernetes and docker
  3. linux-amd64, linux-arm

build kubeapi-inspector

CWD: /repo/

  1. use go build CGO_ENABLED=0 GOOS=linux GOARCH=amd64 GO111MODULE=on go build -o inspector cmd/inspector/main.go
  2. or use docker to build docker build . -t inspector:latest

build & deploy workshop steps

CWD: /repo/workshop/

  1. setup a kubernetes cluster, maybe you should use minikube, e.g. minikube start --kubernetes-version='v1.23.17'
  2. build workshop image with docker docker build . -t workshop-apiserver:latest
  3. deploy etcd for workshop-apiserver cd workshop/examples/etcd && ./generate-certs.sh && deploy.sh
  4. create workshop k8s resource cat examples/{namespace,apiserviceservice,workshop-apiserver-sa,workshop-apiserver-clusterrolebinding,workshop-apiserver-deployment}.yaml | kubectl apply -f -
  5. create demo cluster resource and tenant accounts kubectl apply -f examples/tenant

Usage

Kubernetes Security

in-cluster

  1. download binary in pod

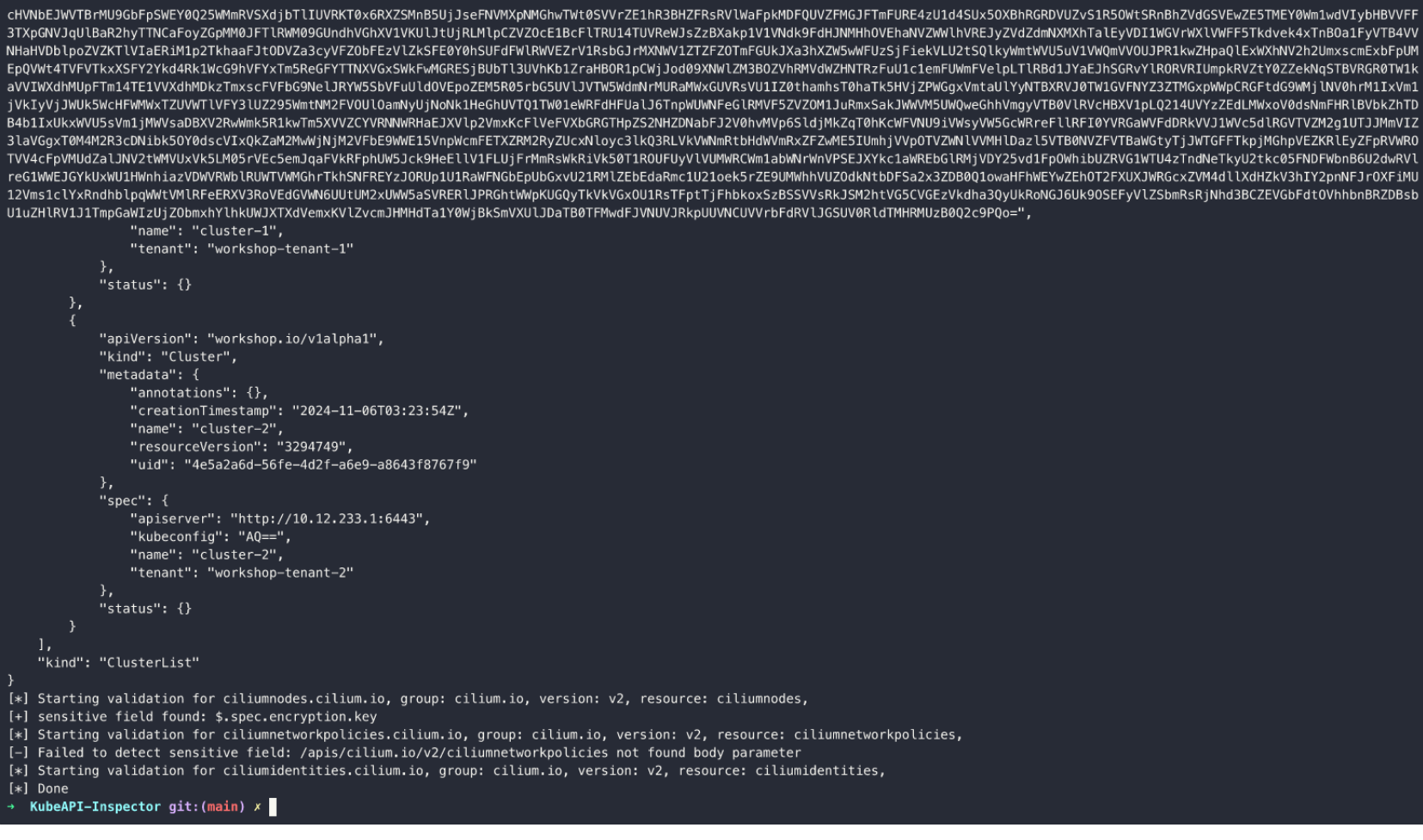

  2. run binary ./inspector

out-of-cluster

  1. ./inspector -kubeconfig path/to/kubeconfig
  2. test other namespace ./inspector -kubeconfig path/to/kubeconfig -namespace kube-system
  3. skip sensitive field test ./inspector -kubeconfig path/to/kubeconfig -skipCheckSensitiveField=true
